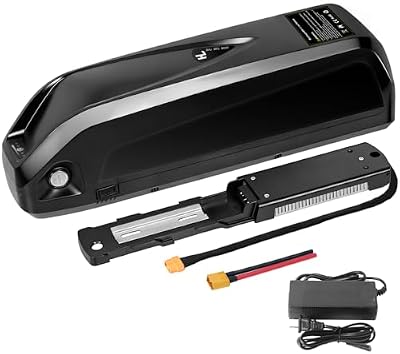

The SEENRONGYUAN 48V 20Ah ebike battery is one of those battery choices that stand out on paper prior to diving into the details. For roughly 220 dollars, it provides 960Wh of energy at a competitive price point. It also has a built in USB outlet to charge your phone, GPS, or lights while on the go, and a simple-to-read LED display showing the remaining amount of charge in the battery. Overall, it is ranked very highly for value on our battery comparison chart, and there are a few characteristics that make it worthy of further review.
Specs and Value
In terms of specs, this is a 48V 20Ah Lithium Ion battery with a 40A BMS. The specifications claim 960Wh of usable capacity. Given its price-point, it works out to roughly 24 cents per Wh, placing it among the lower cost options with similar features.

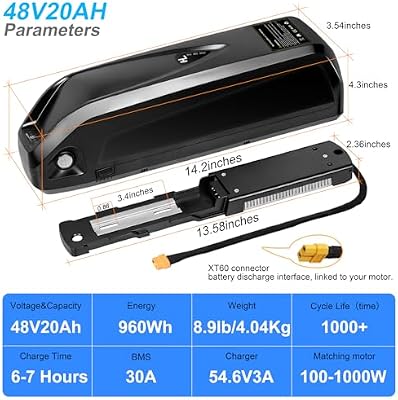

The physical dimensions of this battery are slightly longer and wider than many other 48V 20Ah batteries, measuring 14.2 by 3.54 by 4.33 inches. Its weight is on the heavy side for a 48V 20Ah (likely due to the additional components such as the USB outlet and LED light strip), weighing in at 8.9 lbs.

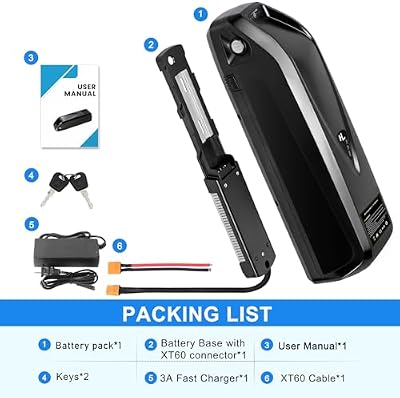

Included with the battery are the typical accessories for mounting including a 5 pin mount for attaching to your bicycle frame, a male XT-60 connector for connecting the battery to the controller, and two keys for securing the lock on the battery.
Construction and Accessories
The case is rated waterproof and has an O-ring style seal to keep water out of the internal components when exposed to rain or road spray. It will withstand being rained upon, but it is not designed to be submerged underwater.

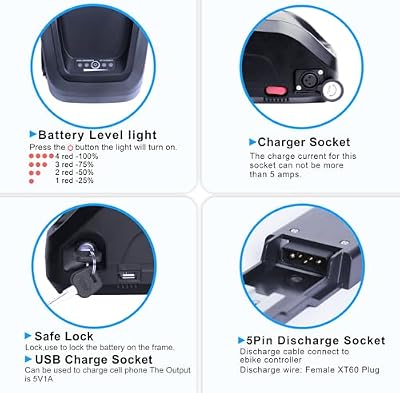

The built-in USB charging port provides a convenient method to charge your phone, GPS unit or lights using the battery itself rather than carrying a second power bank. There are some ebikers that appreciate the ability to easily top off their phones while stopped at traffic lights.
The built-in LED display shows a real time readout of how full the battery is. Rather than trying to guess how far you'll go until the next recharge, you can simply glance at the display to determine if you have sufficient power to complete your ride or if you're going to need to conserve power.
Dimensions and Fitment

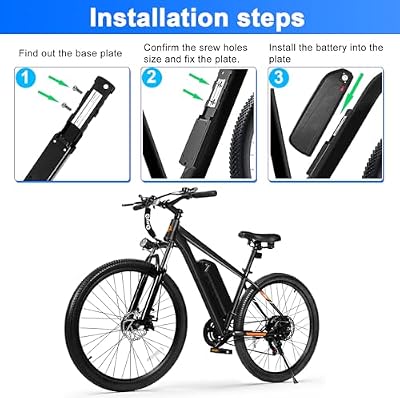

As stated above, the battery uses a mounting base with a five-pin connector, which makes installing the battery neater than using loose cables. The mounting base attaches to your bicycle frame and holds the battery securely in place using a provided key lock.
The dimensions do not fit neatly into any of the commonly used categories. It's neither a downtube-style battery nor a Hailong or Shark Pack style battery. It's more of a compact rectangular-shaped design that fits best on a rear rack or attached to a frame-mounted plate. If your bicycle utilizes a standard mounting plate for batteries that attach via five-pin connectors, then this may be a drop-in replacement.
Compatibility-wise, this battery supports both 100W and 1500W motors, providing compatibility with virtually all ebike configurations with either hub motors or mid-drives.
Expected Range and Power Output
Given the 960Wh of usable capacity in this battery, expected range will vary greatly depending on how aggressively you ride. Using moderate pedal-assist levels and a moderately-powered hub-motor-equipped bike (500W) on relatively flat roads you can expect to get approximately 25 to 35 miles of real-world range from this battery. When utilizing more aggressive throttle inputs or climbing steeper grades you can expect less range (approximately 18 to 25 miles). Under ideal conditions, you can potentially exceed 40 miles.
One item to consider is the manufacturer's claims regarding the BMS. The title lists the BMS rating as 40A, yet in the product details section it states 30A. This matters greatly as it indicates a reduced continuous max power rating from approximately 1,440W at 30A to approximately 1,920W at 40A. In either event it will provide plenty of power for most users' needs and would be suitable for most applications requiring no greater than 500 to 1000 Watts of sustained power. The reason for this discrepancy is unclear.
As part of its accessory bundle the manufacturer has included a male XT-60 connector which will handle high amperage flows well and is a common connector type found within the ebike industry, thereby making spares and repairs easier and faster.
Customer Reviews from Amazon
This battery currently has a perfect 5 star rating on Amazon, based on a limited number of reviews. Most early customers were extremely pleased with the overall quality and additional features provided by this product.
Some reviewers especially appreciated the USB charging port. A couple reviewers specifically mentioned that they did not initially plan on using this capability but now frequently rely on it for charging their mobile devices. Reviews were also favorable regarding the quality and functionality of the provided mounting bracket and XT-60 connector.
On the flip side, two customers gave this product a single-star review, though their comments were hidden from view.
Who Will Benefit From Buying This Product
Overall, the SEENRONGYUAN 48V 20Ah is best suited for ebikers seeking an attractive combination of quality and affordability. While not perfect for every application, it includes several added benefits (such as the USB outlet, LED display and quality mounting hardware) beyond merely being a basic ebike battery.
Good for:
- Ebikes equipped with hub motors or mid-drives
- Ebikers who want to charge their phone from their bike
- Bicycles with standard 5-pin mounting plates
- Riders who want an attractive combination of affordability and quality
Not great for:
- Ultra-light builds (it's 8.9 lbs)
- Riders uncomfortable with the rectangular form factor
- Anyone needing a specific brand drop-in replacement
Frequently Asked Questions
What voltage is this battery?
It's a 48V nominal battery that charges to approximately 54.6V. Designed for 48V ebike controllers.
Does it come with a charger?
The package includes the battery, mounting base, XT-60 connector, and keys. Check the listing to confirm if a charger is included with your purchase.
What are the dimensions?
14.2 by 3.54 by 4.33 inches.
What BMS rating does it have?
The title says 40A but the bullet points say 30A. Assume 30A as the safer number and contact the seller if you need clarification.
What connector does it use?
It comes with a male XT-60 connector and a 5-pin mounting base connector.
Can I charge my phone from it?
Yes. The battery has a built-in USB output port for charging devices.
Is it waterproof?
The casing is waterproof-rated with a sealing gasket. It handles rain and splashes fine but is not submersible.
The Bottom Line
The SEENRONGYUAN 48V 20Ah battery offers a well-rounded feature set at a competitive price. The USB output, LED indicator, and included mounting hardware are genuinely useful additions that most budget batteries skip. The BMS rating confusion is the main asterisk.
If you want a feature-packed 48V 20Ah battery without spending extra, check the current price on Amazon and compare it with other options on our battery comparison table.
