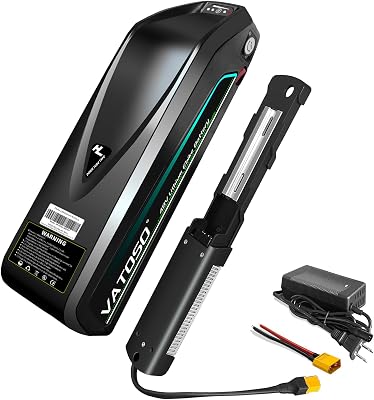

The VATOSO 48V 12Ah is one of the cheaper routes to a lithium pack for a budget build or a dead-battery replacement. VATOSO is a simple lithium-ion ebike battery designed specifically for all 48v systems, including commuter ebikes and conversion kits. The 576wh of usable energy combined with its 30 amp bms provides a great middle ground when considering price versus performance.
As mentioned earlier, VATOSO offers three variations of this battery pack, 12Ah, 16Ah, and 20Ah. This review covers the 12ah version. However, the 30A BMS and ip65 rated housing carries over to both of the other two larger models. Therefore, many of the points covered in this review could apply to either of the larger batteries.
Specs and Build Quality
The VATOSO 48V 12Ah battery pack utilizes standard lithium-ion cells inside of a sealed case. Below are some details regarding specifications:
- Voltage: 48v nominal
- Capacity: 12ah (576wh)
- BMS: 30amp smart bms
- Connector: xt60
- Case rating: ip65 (dust-tight and splash proof)
- Motor compatibility: up to 1500w
Construction quality is typical for products sold within this price bracket. The case is a sturdy plastic enclosure with adequate sealant along seams. Since it's not a downtube or shark style battery, you will attach it to a rear rack or tie it directly to your bicycle frame. Rear rack attachment gives you a lot of options for mounting on the road. Be prepared to purchase a suitable mounting method prior to going offroad.
A feature that stands out is the sealed ip65 case. While you can get caught in a drizzle or exposed to spray while riding in the rain, you do not have to treat it delicately. Just don't submerge the unit. An ip65 rating means it can withstand splashing water and heavy rain, but should not be submerged.

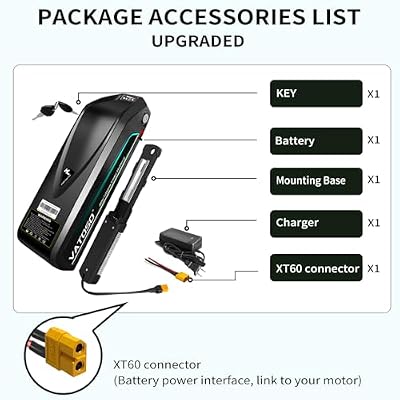

Included accessories include a standard charger capable of delivering 54.6V at 2amps, an xt60 discharge connector, and a mounting base that attaches via screws to nearly all rear mounted bicycle racks.
BMS, Safety, and Design
The built-in 30amp bms ensures safe operation of this battery pack. Protections include overcharge, overdischarge, short-circuit, and excessive temperature conditions.
Given that this is a 48 volt 12ah battery operating at a max discharge rate of 30 amps continuously and approximately 1440 watts peak discharge, it fits well within their claims of supporting motors up to 1500 watts.
Something important to consider is that this bms is optimized for moderate discharge rates. If you're running a high current mid-drive on steep inclines you may reach the maximum discharge threshold quicker than expected. Amazon reviewers who were using either a 500-750 watt or a 1000 watt hub motor reported no problems, but since there is a possibility of reaching the bms limitation, consideration should be given.
Zero maintenance as claimed by VATOSO is standard with ebike battery packs. No topping off required. Simply connect it to your ebike controller and charge it. The provided 2amp charger is quite slow. Charging a fully depleted battery takes anywhere from six to seven hours depending on your system configuration. Faster chargers can be purchased separately.
VATOSO has also installed a DC output on the backside of the unit itself (DC 5V at 1A). While it's not considered fast charging by today's standards, it is perfect for charging accessories such as bike lights or a GPS device during extended use.
Real-World Range and Performance
Using 576wh available from the battery, actual performance and range will vary greatly based upon how efficiently your motor operates, type of terrain ridden, amount of throttle used versus assisted pedaling, and more. Below are some estimated ranges assuming a typical 500 watt hub motor:
- Light pedal assist (PAS 1-2): 25-35 miles
- Moderate pedal assist (PAS 3-4): 18-25 miles
- Heavy throttle use: 12-18 miles
- Aggressive riding / hills / 1000W motor: 10-15 miles
Estimated mileage assumes an average weight bicyclist on mostly flat routes. The advantage of using the smaller 12ah battery is that you can easily carry another battery in your backpack if needed to increase range.
Since the battery uses the industry standard xt60 discharge connector, which is compatible with most controllers and conversion kits, you can simply replace it if desired or obtain an adaptor. Make certain you check the polarity before making connections.
What Amazon Reviewers Are Saying
Amazon buyers have reviewed the product extensively. The overall rating among amazon shoppers is a strong 4.3 stars based on 34 reviews.
The good stuff: Many reviewers complimented the reliable power delivered by the battery and the ease of plug-and-play setup for 48v conversions. Multiple reviewers mentioned using this pack with Bafang mid-drives successfully. Several reviewers praised the ip65 rated case for protecting against rain exposure.
The complaints: Slow charger speed was referenced multiple times. A couple reviewers suggested a faster charger would make a huge positive impact on daily commuting. Some felt additional bracing would be necessary for off-pavement riding or aggressive mountain terrain.
The one-star outlier: One reviewer left a one-star review for what appears to be a manufacturer-related issue. It is possible they received a defective unit or experienced an unusual problem due to improper installation. Given the number of units sold at this price level, a handful of faulty units is inevitable.
Who Is This Battery For?
Overall, this battery best suits those who are planning their first ebike conversion on a limited budget and require a reliable battery, or those needing an affordable replacement.
This battery is particularly good for:
- First-time ebike converters wanting an affordable yet reliable battery
- Rear rack mounting setups where a shaped downtube unit won't fit
- Riders with 500W-1000W hub motors on paved streets and bike paths
- Short commutes and casual weekend rides
- Backup or secondary battery for extended journeys paired with your main pack
This battery is less suited for extreme off-road enthusiasts needing a rugged downtube frame pack, or those with motors over 1500W that may exceed the 30A BMS limit.
Frequently Asked Questions
Will this battery work with my Bafang BBS02 or BBSHD?
Yes, assuming your mid-drive kit is configured for 48 volts. Since both your controller and the discharge connector use xt60 connectors, pairing them should be straightforward. Just make sure your motor's peak draw stays under the 30A BMS limit.
What's the difference between the 12Ah, 16Ah, and 20Ah versions?
All three use the same 48V architecture and BMS. The only differences are cell count, physical dimensions, and capacity. The 16Ah gives you 768Wh and the 20Ah gives you 960Wh. The bigger packs are physically larger and heavier.
Can I use a different charger?
Yes, any standard 54.6V lithium-ion charger with the correct connector works. A 4A or 5A charger cuts charge time from 6-7 hours down to around 2-3 hours for the 12Ah pack.
How do I mount this battery on my bike?
The battery comes with a mounting base plate. Screw the base onto your rear rack or frame, slide the battery on, and lock it with the key. Some users recommend adding an extra strap for rough terrain.
Is this battery waterproof?
It's IP65 rated, dust-tight and splash-proof. It'll survive rain and puddles, but it's not submersible.
How long will this battery last?
Lithium-ion cells in this class typically last 500-800 full charge cycles before noticeable capacity loss. With moderate use, that's roughly 3-5 years. The BMS helps extend life by preventing overcharge and deep discharge.
