Front-wheel hub kits usually get dismissed based on what people say in forums, and then comes winter. Your rear wheel disappears under snow, and suddenly a front hub pulling a fat bike through slush makes total sense. The MIOUYTRT 48V 1500W front kit is designed specifically for that application: fat-tire bicycles (rubber 26 x 4.0 inches) and up to 31 to 37 mph. But there's an obvious catch. One review, 5 stars, no history. Specifications look great, cost looks great, but this is a buy-at-your-own-risk type of listing.
Specifications and Build Quality

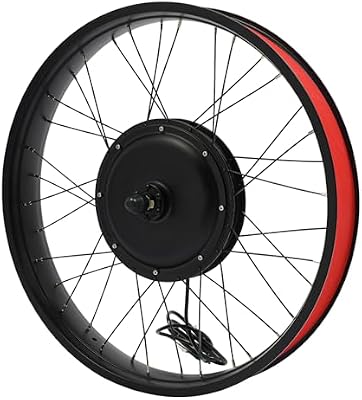

The motor is a 1500W brushless, gearless, direct drive hub built into a fat-tire front wheel with a rim size suitable for 26 x 4.0 tires. Direct drive gearless motors offer near silent running and simple design with reliable operation. The downsides are slightly increased pedal resistance when the motor isn't powered and lower torque than gear-based designs at very slow speeds.

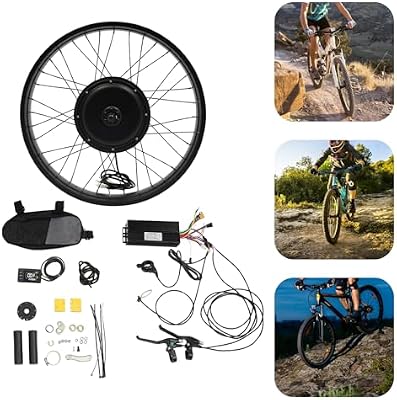

The kit contains the LCD display, controller, throttle, and brake cut-off switch. The LCD display shows speed, battery, mileage, voltage, and error messages. There are 5 different speed settings and fixed speed cruise mode. Cruise control is relatively rare at this price range and can be really helpful while riding flat sections of trail for longer distances.
Build quality follows the same budget kit patterns: heavy duty wheel, easy to access connectors, wire colors match the kit components and require ability to read a schematic. Spacing of the front axle fits standard 100 mm fat-bike dropouts. One warning far exceeds all others. A 1500W front hub produces significant amounts of torque at the axle and requires aluminum dropout frames to be equipped with a torque arm to prevent the axle from rotating off-center due to excessive torque.
Power and Real-World Speed
The stated speed band of 31 to 37 mph appears reasonable for a 1500W direct drive hub on a 48V system. However, that's about where I'd expect to see performance with a rider aboard. As expected for a front hub, acceleration is good since the large contact area of a fat tire provides traction until it encounters loose or slippery roadways. Hard throttling on loose surfaces can cause the front wheel to lose traction. Smooth throttle input tends to eliminate that issue.
Sustained steep grades tend to put heat into the hub limiting its operation. Therefore, planned routes should favor flat terrain and rolling hills over sustained climbs.
What Do Amazon Reviewers Say About It
There is just one review and it's a five star rating. And again, there is nothing to speak of here as that is not a track record. Kits such as this fall into two camps. Either they show up properly assembled and operate within specifications or they suffer shipping damage or confusing wiring and ultimately tell that story via multiple reviews. In this case, with just one reviewer you have no established track record. So, purchase through Amazon and examine the wheel immediately upon receipt. Make sure it spins true before you go ahead and mount it.
Spin the wheel with the motor unplugged and feel for grinding or rub spots at the rim. Check that the axle nuts and the washer alignment sit flush in the dropouts. Plug in the display last, after every connector is seated, because a half-seated phase wire is the most common no-power complaint on kits like this one.
Who Should Purchase This Kit?
Purchase it if you have a fat bike with sturdy dropouts and wish to provide yourself with some serious power on beach rides and snowy trails, and you don't mind taking on the risk associated with purchasing an item with only one review. Also, consider this as a project for someone who already owns a 48V pack and wishes to create something new for winter.
Do not purchase it if you need to know that it has been tested extensively and shown reliability documented in many reviewers' comments or if your frame is not compatible with a torque arm. Those who prefer less of an integrated motor unit may prefer to view the full field of available kits on the conversion kit table page which lists various kits based upon price per watt. We cover the details involved in building conversions on the blog page. Wikipedia offers excellent information regarding the physics of direct drive DC motors.
View the current listing before purchasing, since inventory turns quickly on items such as this kit.
FAQs
Will using a 1500W front hub motor be safe?
Yes if you install a torque arm, tighten the axle nuts correctly and apply smooth throttle inputs. No if you do not install a torque arm.
Does it come with a battery?
No. You'll need to source a 48V battery with a BMS capable of handling its maximum current draw (at least 30A continuous).
May I use it as a rear kit instead?
It's listed as a front kit for 26 x 4.0 inch tires. Look for other configurations from the manufacturer for rear wheel applications.
Will the installation process be difficult?
Moderate difficulty level for those experienced with changing wheels and reading schematics. First timers should take photos of the original front wheel and brakes before removing them.
What kind of maintenance will I need to perform?
Very little. Gearless hubs consist of seals and bearings only. Verify axle nut tightening after your first 50 miles of travel. Keep connectors clean and dry.
What battery should I pair with it?
Any 48V pack with a BMS rated for 30A continuous or better. A 20Ah pack gives roughly an hour of hard throttle use, and a 15Ah pack keeps weight down for shorter rides. Match the connector or plan to swap the plug during install.
Does cruise mode actually hold speed?
It does on flat ground, which is where cruise matters anyway. The controller holds the throttle position it was set at, so rolling terrain will make the assist surge and fade. Set it on smooth sections and cancel it with the brakes.
Is a front hub a bad idea on a fat bike?
Not with torque management. The wide tires grip well, which is exactly why the torque arm matters, since grip is what lets the axle twist in the dropout. With a torque arm installed, plenty of riders run front hubs on fat bikes for years.
How wet can it get?
The hub itself shrugs off rain and puddle spray. The controller is the vulnerable part, so mount it high, away from wheel spray, and seal the connector joints with heat shrink or quality electrical tape.
