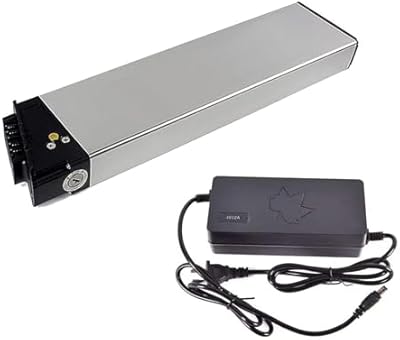

The main factor contributing to a substantial increase in performance of a folding electric bicycle (eBike) is likely the battery. The SDTYYP 48V 13.6Ah pack will help accomplish this goal. It is a direct DCH-006 replacement that increases the standard 10.4Ah battery to 13.6Ah for approximately 652.8Wh, about 30% more energy than most Lectric XP eBikes have shipped with. It contains a 54.6V 3A charger, which is significantly better than the majority of replacement battery sellers offer, and is completely sealed and waterproof. For an owner of a Lectric XP wanting to extend the range of their eBike, this provides a practical alternative.
See the current prices on Amazon.
Specifications & Construction
SDTYYP operates at 48V nominal with 13.6Ah of storage for a total of 652.8Wh. This represents an approximate 30% increase in the energy content of the battery compared to the typical 10.4Ah packs used in most DCH-006 Folding Electric Bicycles. The battery employs lithium-ion 18650 cells and incorporates a 30A BMS that protects against overcharge, over-discharge, overcurrent, and short-circuit scenarios. The manufacturer recommends operation with motors rated at 350W to 1200W although most applicable folding ebikes employ either a 500W or 750W motor.
Physical Properties

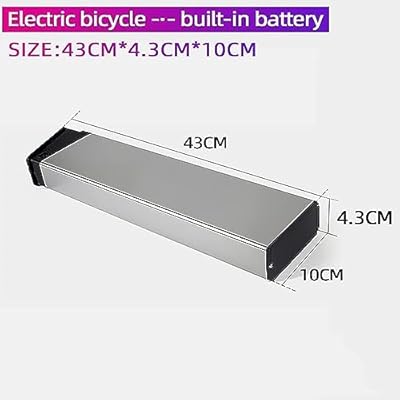

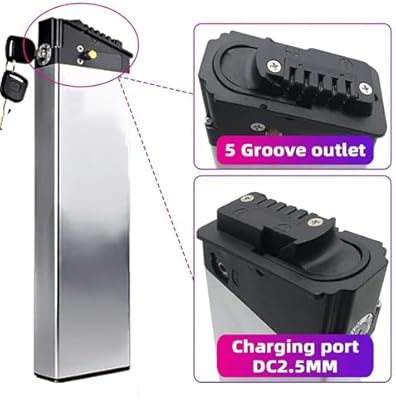

The battery is reported to be 430 x 100 x 43mm in size and weigh 8.8 pounds as stated in the specifications list. Slightly smaller in mass than many other 13.6Ah DCH-006 replacement packs. A fully-sealed and waterproof design ensures moisture and debris cannot enter the compartment containing the battery components. The five-pin DC output connector is constructed to connect to the standard DCH-006 interface, and a two-position keyed disconnect serves as both a safety lock-out when the bike is unattended and as the power switch when operating. Rotate the ignition switch to energize the battery. Rotating it again will turn off the system, and prevent unauthorized start-up when stored.
BMS & Power Output Capability
A 30A BMS at 48V equates to a maximum theoretical continuous output of 1440W (assuming a purely resistive load), providing ample margin for the motor types commonly associated with applicable folding ebikes. Although a 1000W or 1200W motor may exceed the limit during rapid acceleration uphill, it will not reach the cutout point due to the high BMS current rating specified by SDTYYP.
Dimensions & Compatible Models
This is a replacement DCH-006 style built-in battery that simply replaces the existing battery within the frame of applicable folding ebikes. The specifications call out the Lectric XP 1.0, 2.0, and 3.0 models. In addition to checking for a DCH-006 designation on the black plastic cap atop the existing battery, ensure your existing battery has the same physical dimensions (430 x 100 x 43 mm) prior to ordering.
A Lectric XP owner seeking increased range will find this an attractive option to replace their factory provided 10.4 Ah battery. The battery dimensions remain unchanged relative to those of standard DCH-006 units. Therefore, there should be no issue regarding fitment. However, Lectric XP Lite owners require an equivalent model designed for their specific model's (shorter) 410mm slot dimension. Please refer to our article outlining the differences in these configurations.
In addition to comparing price per Wh-Hour of several battery designs, we've created an Ebiking Batteries Comparison Table to aid in narrowing down your choices. This allows users to filter options by Voltage, Capacity, Price-per-Watt-Hour etc., making comparisons easier.
Included Charger & Charging Time

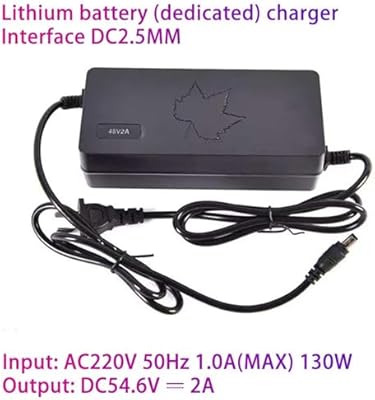

Another notable aspect of this kit is the inclusion of a charging adapter. While many manufacturers selling DCH-006-style replacement batteries elect to omit chargers from their kits forcing customers to utilize their original chargers or purchase new ones, SDTYYP has taken the initiative and included a matching 54.6V @ 3A charging unit. Although SDTYYP cites an estimated time of 5 to 6 hours from complete depletion using their supplied charging unit. They state this estimate applies regardless of the type or capacity of the previously installed battery.
Utilizing a separate charging unit for a secondary (spare) battery will provide significant benefits if you plan to operate your primary battery while carrying an additional (spare) battery. As a result, you'll always possess a charged (ready-to-go) spare battery whenever desired.
Estimated Real-World Ranges
Based upon its 652.8Wh capacity, this SDTYYP Battery Pack offers an estimated range extension benefit over the stock 499Wh batteries. SDTYYP estimates that this extended-range capability will translate into ranges of approximately forty to sixty kilometers (or roughly twenty-five to thirty-seven miles). However actual range will depend heavily upon such factors as motor type, terrain ridden, weight of operator(s), amount of assistance employed via pedal-assist function and personal preference.
On relatively level terrain with modest amounts of assist and a light rider utilizing a 500-watt motor, it is possible for operators to achieve distances approaching thirty-five miles or greater. Conversely, heavier riders employing a more powerful (750watt) motor on hilly terrain at maximum throttle will probably experience distances of fewer than twenty-five miles.
Increased Range Benefits To Lectric XPs Owners Using Stock Batteries
As mentioned earlier, this battery pack extends approximately thirty percent more capacity than standard stock batteries utilized in Lectric XP eBikes. Consequently, this could mean the difference between completing an extended-length commute without range anxiety vs having to curtail travel early due to lack of sufficient remaining capacity.
What Do Amazon Buyers Say About The Product?
With only five customer ratings currently available for review on Amazon since late June (when it became available), establishing definitive conclusions regarding its durability and longevity are difficult at present.
However, all reviewers thus far have been extremely satisfied with their purchase decision. Several reviewers noted that the SDTYYP battery fitted perfectly into their respective Lectric XP frames without requiring any modifications whatsoever. All reviewers were pleased with the estimated additional range expected from the higher-capacity replacement batteries, particularly in reference to their previous stock capacity batteries. Additionally, each reviewer was very pleased with both the quality of construction (waterproofing etc.) and performance characteristics exhibited by the SDTYYP battery.
Only two minor criticisms were offered by reviewers, primarily relating to uncertainty surrounding how well a third-party component would perform (and ultimately last), and whether it would work properly with their existing bikes' systems. With respect to confirmation of compatibility before purchasing any item, including batteries, we always recommend verifying compatibility with your particular model before purchasing.
To access more recent buyer comments and ratings click here to view them on Amazon.
Why Should Someone Purchase This?
The SDTYYP 48V 13.6Ah battery is a strong pick for Lectric XP 1.0, 2.0, or 3.0 owners who want more range than the stock 10.4Ah pack. The extra capacity and included charger make it a convenient upgrade. See current pricing on Amazon to compare.
SDTYYP 48V 13.6Ah Foldable Ebike Battery is best suited for owners of Lectric XP 1.0, 2.0 or 3.0 models that desire increased range beyond what can be achieved with their stock 10.4Ah battery. This provides approximately thirty percent more capacity per charge cycle at nearly the same cost as the stock batteries. Furthermore, this includes an included charger, unlike most other replacement battery suppliers, providing an additional advantage to those desiring convenience and/or wishing to save money.
Since this product carries only five ratings (at this moment) representing virtually no real world testing experience. Be aware that you're taking a gamble on an item with little history based on user feedback, i.e., confirm compatibility prior to ordering (i.e., verify your existing battery meets both dimensions listed, namely: (430 x 100 x 43 mm), length-wise width-wise height-wise) and take measurements prior to ordering.
Finally, we suggest you visit our Blog page to read articles reviewing multiple styles of folding ebike batteries, and then utilize our Comparison Chart located on our Ebike Batteries Page that enables sorting by Watt Hour Per Dollar pricing among others.
FAQs
Did you include a charger?
Yes! SDTYYP included a charger with their package (a nice bonus compared to lots of DCH-006 Replacements being sold without chargers!)
Will this battery fit my Lectric XP Lite?
Unfortunately NO, Your XP Lite is a "Short" version (uses the shorter slot: 410mm) while this battery is 430mm, suitable for Standard XP versions: 1.0 / 2.0 / 3.0 models!
What kind of extra range can I expect?
You can expect about 5 -10 miles extra range (depending on motor efficiency, terrain grade and your own riding habits!) from increasing capacity from standard stock capacity (10.4Ah = 499wh) to almost 653wh with your new 13.6Ah!
