Most 48V 1500W conversion kits are made to fit the common wheel diameters (26 and 29-inch) found on almost all trail bicycles. The YUASDUU 48V 1500W kit is different. It comes with a 20-inch fat-tire rear wheel, placing it firmly in the snow-bike/beach-cruiser/compact-build arena. This smaller wheel is a significant differentiator for this kit and therefore affects how you consider this kit prior to purchase. I researched the YUASDUU 48V 1500W hub conversion kit on Amazon to determine who the wheel is actually intended for.
First, let’s discuss the form factor. A 1500W hub motor in the rear using a 20-inch fat tire is not your average commuter build. It is a purpose-built snow/off-road machine. The fat tire is approximately 3.94 inches wide with an anti-slip tread design that “grips” snow/sand/loose dirt. This type of build is perfect for winter riding or beach cruising. however, not suitable for riding in tight city lanes.
Specs & Build Quality

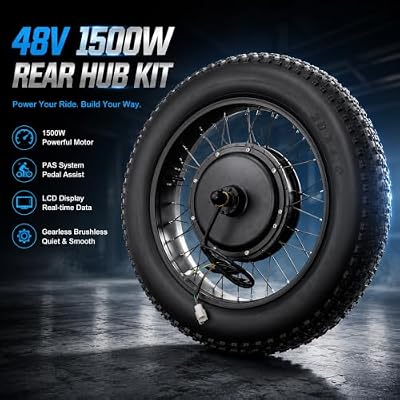

The YUASDUU conversion kit features a gearless brushless hub motor that is rated at 1500 watts and operates at 48 volts. Gearless direct-drive motors operate differently than geared hubs. They typically produce less noise due to fewer internal gears spinning, and they last longer due to the reduced amount of moving parts. However, they do weigh more and produce drag when coasting without power. For a fat-tire snow build, the benefits far outweigh the drawbacks.
According to YUASDUU, the motor efficiency of their hub motor is greater than 82%. That’s a respectable number for a direct-drive unit, and that equates to acceptable mileage per watt when paired with a suitable 48V battery. In addition, YUASDUU states that their kit supports loads of up to 330.69 pounds. Heavyweight riders and/or riders carrying cargo will fall into the supported envelope. This weight capacity is huge for a compact build using a small diameter wheel as the wheel undergoes more stress per revolution than larger diameter wheels.

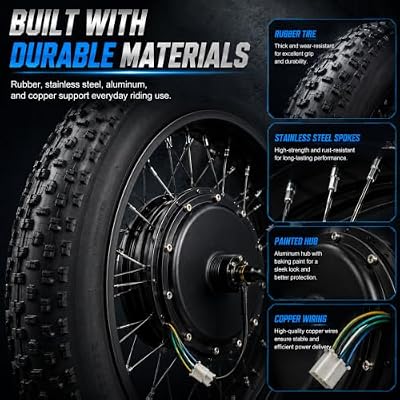

In terms of build components, the tire is constructed from high-quality rubber featuring a thick, wear-resistant compound. The spokes are made of stainless steel and are impervious to corrosion caused by saltwater exposure - unlike many lower cost plated spokes that may corrode quickly. The hub body itself is constructed from aluminum and coated with a baked-on paint finish that provides excellent scratch resistance and durability against impacts. Inside the motor, copper windings provide efficient energy transmission.
As mentioned earlier, the anti-slip tread design isn’t just marketing hype - it’s an actual benefit for both snow and muddy applications. The deep, chunked knobs help bite into the surface while providing a large contact area for stability. As an additional benefit, this tread design was created specifically with the needs of riders who plan to utilize these types of vehicles during the winter months. Be certain to view the present YUASDUU Conversion Kit listing on Amazon, as suppliers sometimes switch components between batches.
Installation & Compatibility
At this point we’re talking about the 20″ wheel again. While this conversion kit is designed for fat-tire frames with sufficient clearance in the dropouts to accommodate the motor axle, most standard mountain bike frames feature narrower spacing in the rear, and thus won’t accommodate this wheel without extensive modifications. Prior to ordering, please verify that your frame’s rear spacing matches the specifications listed below.
Additionally, as previously discussed, the 20″ diameter of this wheel significantly alters the geometry and ride height of your bicycle. Thus, it’s ideal for folding bikes, small-frame fat bikes and compact snow machines. However, it’s NOT a drop-in replacement for your typical 26″ trail bike. Verify that your frame/fork combo was specifically designed to utilize a 20″ wheel before making a final purchasing decision.
Installation occurs via the normal process of installing a conversion kit. Mount the motor wheel onto the rear dropouts of your bike. install the controller in the supplied bag. route the wiring harness along your frame. attach the PAS sensor to the bottom bracket. and connect your power-off brake levers to the wiring harness to ensure the motor deactivates upon braking. This safety feature is critical to prevent accidents and is essentially plug-and-play thanks to color-coded connectors.
Like many kits sold today, YUASDUU includes relatively little documentation relative to the quantity and complexity of components provided. Therefore, first-time builders should anticipate spending a minimum of two hours completing installation - even more so if you’ve never installed an electric bike from a kit before. Furthermore, watching two or three YouTube videos will greatly enhance your experience.
Ride Characteristics / Performance
Due to its smaller diameter, the 1500W hub motor produces tremendous torque on a 20″ wheel - essentially multiplying the traction force at the tire contact patch with each revolution of the motor. The torque output from this motor is perfectly suited for climbing steep inclines as well as powering through deep snow. Top-end speed is compromised somewhat due to the higher RPM produced by a smaller diameter wheel. In general, swapping some top-speed potential for low-end oomph is an acceptable tradeoff depending on your desired riding style.

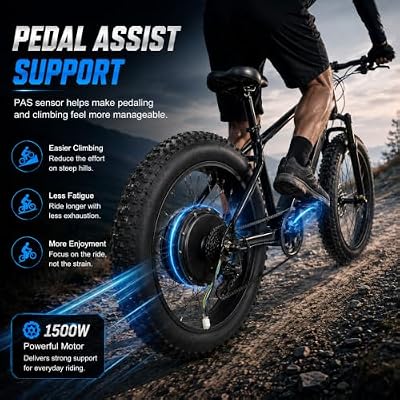

Another advantage of the gearless motor is its extremely quiet operation - allowing you to enjoy listening to snow crunching beneath your tires instead of engine whine. Additionally, the PAS sensor provides seamless assistance throughout your entire pedal stroke, making climbs feel effortless. For those interested in utilizing this product as a snow bike, this pedal-assist support makes all the difference in having a pleasant cruise versus grueling exercise.
The LCD display showcases speed, battery level, assist modes and error messages simultaneously on a single screen. Similar to most budget displays available today, this LCD meets expectations for price.
Unlike most brake systems used on e-bikes, the power-off brake levers employ mechanical switches vs. advanced magnetic sensors - but they are both effective and simple-to-service.
Honesty Time: The kit has only five reviews on Amazon currently - resulting in an average rating of ~3.4 stars. Reviews reflect varying degrees of success and failure among users - some users obtained the desired torque and snow performance. others experienced fitment issues with frames lacking adequate clearance in the rear. and some reported various issues commonly associated with budget kits (i.e., poor instructions and setup). Although none of these points are particularly damaging individually - together they create uncertainty regarding this newer brand.
Who Should Buy This Kit?
Builders seeking a complete rear wheel assembly utilizing a 20″ fat-tire and capable of supporting upwards of 330 pounds (based on manufacturer’s claim) - either as part of an existing 20″ fat-tire bike or as part of building a compact snow-machine - may find this kit useful. Builders seeking maximum low-end torque (as opposed to highest possible top speed) - as well as those requiring assistance on flat stretches for increased hill-climbing ability - will likely appreciate the inclusion of a PAS sensor.
However, builders needing maximum top-end speed on paved roads will find that a 20″ wheel results in undesirable characteristics - such as ride-height increase and loss of stability at high speeds - for commuting purposes. Buyers seeking products from reputable manufacturers backed by numerous customer reviews will find this kit difficult to justify based solely on reviewer count.
A comprehensive list comparing conversion kits including recommended batteries for pairing with this specific model can be viewed by visiting our Ebike Conversion Kit Comparison Page page as well as reviewing the rest of our blog for further advice on how to build your e-bike.
Frequently Asked Questions
Does the YUASDUU kit include a battery?

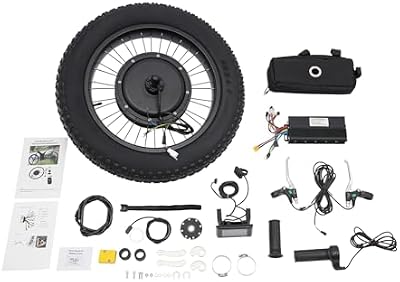

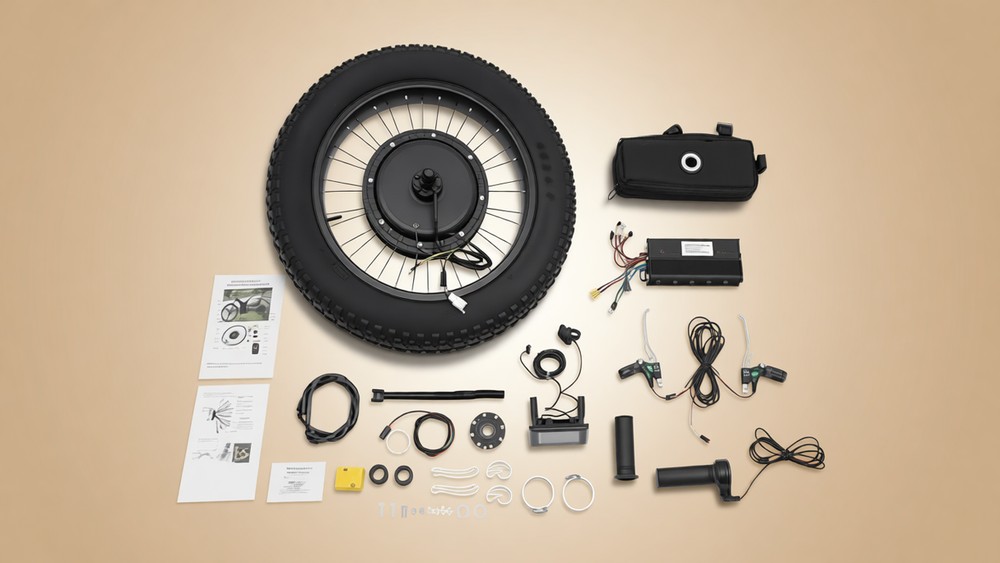

No. The kit ships with the motor wheel, controller, controller bag, LCD display, throttle, PAS sensor, brake levers, and wiring. You need to buy a 48V ebike battery separately.
What frame will the 20 inch wheel fit?

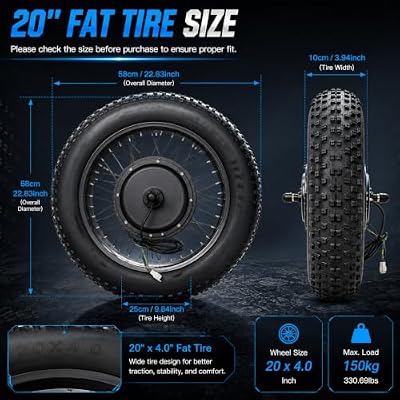

The 20 inch fat tire wheel is built for compact frames designed around that wheel size, including folding bikes and small fat bikes. Standard 26 inch mountain bike frames will not accept it without major changes. Measure your frame and rear dropout spacing before ordering.
How fast is a 1500W 48V hub motor?
On a 20 inch wheel, expect strong torque and a more modest top speed than a larger wheel would deliver. Actual speed depends on rider weight, battery voltage under load, and terrain.
Is this kit street legal?
That depends on where you live. A 1500W motor puts this kit well above the typical 750W Class 2 and Class 3 limits in the US, which usually classifies it as a moped or motor vehicle. Check your local laws before you build.
How hard is the installation?
Moderate difficulty. If you can change a tire, adjust brakes, and follow color coded wiring, you can handle it in an afternoon. First time builders should budget three to four hours and watch tutorials first.
How much weight can the kit support?
YUASDUU rates the kit to support up to 330.69 pounds. Heavier riders and riders carrying cargo are within the stated envelope, but make sure your frame and brakes are up to the task.
