The ShunTongDa Lectric XP Lite replacement battery is a 48V 10.4Ah folding ebike battery designed for the shorter 410mm DCH-006 battery slot. At 499.2Wh and roughly 0.38 per Wh, it sits at the same price point as the standard 430mm DCH-006 packs, but this version specifically targets the Lectric XP Lite, Janobike H20, and SMLRO S9 folding ebikes that use a shorter battery housing. The listing currently holds a perfect 5.0 star rating across 3 reviews, and ShunTongDa backs it with a 12-month warranty. The shorter 410mm length is the distinguishing feature here, so paying close attention to your original battery dimensions before ordering is especially important.
Specs and Build Quality
The ShunTongDa pack runs at 48V nominal with 10.4Ah capacity for a total of 499.2Wh. It uses A-grade 18650 lithium-ion cells rated between 2600mAh and 3500mAh per cell. The 30A BMS provides overcharge, over-discharge, overcurrent, overvoltage, and short circuit protection. ShunTongDa rates the battery for motors up to 1000W, though most of the compatible folding ebikes run 500W or 750W motors.
Physical specs

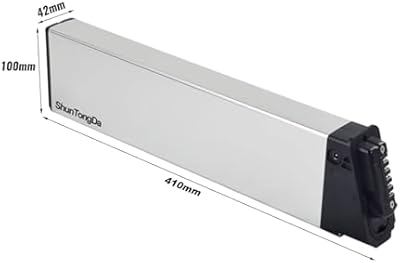

The critical dimension to note is 410 x 100 x 42mm, which is 20mm shorter than the standard 430mm DCH-006 batteries. This shorter length is what makes it compatible with the Lectric XP Lite and similar compact folding frames. The battery weighs 6.82 pounds according to the listing, which is noticeably lighter than the 9.9 pound packs that use the standard 430mm format. It uses a 5-pin discharge connector and includes the standard DCH-006 safety lock that doubles as the power switch. You turn the key to activate the battery before riding, and the key stays in place until you stop.
BMS and motor range
The 30A BMS at 48V delivers a theoretical continuous output of 1440W, which gives solid headroom beyond what the compatible motors actually draw. ShunTongDa claims the battery should last 800 to 1000 recharge cycles, which works out to roughly 3 to 5 years of regular use. The BMS protection covers the standard failure modes, and the built-in design means everything is self-contained within the battery housing.
Form Factor and Compatibility
This battery uses the DCH-006 built-in form factor but at the shorter 410mm length instead of the standard 430mm. The listing specifically calls out compatibility with the Lectric XP Lite, Janobike H20, and SMLRO S9. The DCH-006 logo should be visible on the black top cover of your original battery under the handle. The 5-pin discharge port matches the original connector on these bikes, so no wiring modifications are required.
It is important to understand that this battery is NOT interchangeable with the standard 430mm DCH-006 packs. If your folding ebike uses the longer 430mm battery slot, this shorter pack will not fill the space properly and may not connect securely. Likewise, if your bike uses the 410mm format, the longer 430mm batteries will not fit. Always measure your original battery before ordering.
For a wider selection of 48V batteries, check the battery comparison table where you can sort and filter by voltage, capacity, and price per watt-hour.
Real-World Range Estimates
At 499.2Wh, the ShunTongDa battery should deliver roughly 20 to 35 miles of range depending on motor size, terrain, rider weight, and pedal assist level. On flat terrain with moderate pedal assist and a 500W motor, lighter riders can push toward the higher end of that range. Heavier riders using full throttle on a 750W motor over hilly terrain will see range drop closer to 20 miles or less.
The 10.4Ah capacity is consistent with what the Lectric XP Lite ships with from the factory. If your original battery has lost capacity over time, swapping in this pack should restore the range you remember from when your bike was new. For riders looking to extend their daily range, this also works well as a second battery that you can swap in mid-ride.
What Amazon Reviewers Are Saying
The ShunTongDa Lectric XP Lite battery holds a perfect 5.0 star rating across 3 reviews. While a perfect score is always encouraging, the low review count makes it impossible to draw broad conclusions about long-term reliability. The listing became available in November 2025, so it is still relatively new to the market.
All three reviewers appear satisfied with their purchases, which is a positive sign. For a niche product targeting specific folding ebike models, early positive reviews often indicate that the battery fits and functions as described. ShunTongDa offers a 1-month return window and a 12-month warranty with free repair, which provides some protection if the battery does not perform as expected.
If you want the most current buyer feedback, check the latest reviews on Amazon to see if the review count has grown since this article was written.
Who Should Buy This
The ShunTongDa Lectric XP Lite replacement battery is specifically for owners of folding ebikes that use the shorter 410mm DCH-006 battery format with a 5-pin discharge port. If you own a Lectric XP Lite, Janobike H20, or SMLRO S9 and need a replacement or spare battery, this is one of the few listings that specifically targets your shorter battery slot. Most DCH-006 batteries on Amazon are the 430mm version, making this a more specialized option.
The 5.0 star rating is encouraging but based on only 3 reviews, so you are still an early adopter of sorts. The 12-month warranty and return policy provide a reasonable safety net. The most critical step before purchasing is confirming that your original battery measures 410 x 100 x 42mm and has the DCH-006 label, since ordering the wrong length will result in a battery that simply does not fit.
For more 48V folding ebike options, browse the ebike battery reviews or compare all batteries by price per watt-hour on the comparison table.
Frequently Asked Questions
Will this battery fit the standard Lectric XP (not the Lite)? Most likely not. The standard Lectric XP uses a 430mm battery slot, while this battery measures 410mm. The 20mm difference means it will be too short for the standard XP frame. Check your original battery dimensions before ordering.
What is the difference between the 410mm and 430mm DCH-006 batteries? Both use the DCH-006 form factor and 5-pin discharge port, but the 410mm version is 20mm shorter. They are not interchangeable. Folding ebikes like the Lectric XP Lite use the shorter format, while bikes like the Samebike LO26 use the longer 430mm format.
Does this battery come with a charger? The listing does not mention a charger being included. If you have the original charger from your Lectric XP Lite or compatible ebike, it should work with this replacement battery since the voltage and connector are the same.
Why is this battery lighter than other 48V 10.4Ah packs? The listing shows a weight of 6.82 pounds, which is lighter than the typical 9.9 pound 430mm packs. The shorter 410mm housing uses a different cell configuration to achieve the same capacity in a smaller space, which could account for the weight difference.
How long will this battery last before needing replacement? ShunTongDa claims 800 to 1000 recharge cycles. At one full charge per day, that translates to roughly 2 to 3 years of daily use. Proper charging habits and moderate storage temperatures will help extend the lifespan.
Is this battery compatible with the Janobike H20? Yes, the listing specifically mentions the Janobike H20 as a compatible model. Verify that your specific H20 uses the 410mm DCH-006 battery format with a 5-pin discharge port before ordering, as there may be variations between production runs.
