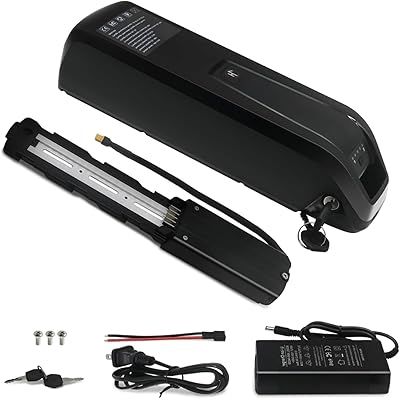

Getting 960 watt-hours into a hailong/shark form factor is the right goal for riders who want the extended range of a 20Ah pack with the weight distribution and frame-integrated clean mounting that external box options can't provide. The KUSAYLA 48V 20Ah 4-pin hailong battery delivers that combination with a 30A BMS rated for 75A peak, an XT60 discharge plug, and motor compatibility extending from 0 to 1800W. The 4-pin base connector is the compatibility critical spec for this listing. Verify this matches your ebike frame's battery mount before ordering.
This is a newer listing without an established Amazon review base. The specs are the primary basis for evaluation.
4-Pin vs 5-Pin: The Critical Compatibility Question
The KUSAYLA 48V 20Ah comes in two variants: 4-pin and 5-pin. These listings are different products with the same core specs but different base connectors. Your ebike frame's hailong battery mount determines which pin count you need. Installing a 4-pin battery in a 5-pin mount (or vice versa) creates a compatibility mismatch that prevents the electrical connection from completing.
Check your existing battery or your frame's battery slot documentation to confirm whether you need 4-pin or 5-pin. If you're building a new frame from scratch and have a choice, consult the documentation for the frame's battery mount. This is the single most common source of compatibility issues with hailong packs, and it's entirely avoidable with a pre-purchase check.
Many negative reviews for hailong batteries on Amazon trace back to this one issue. The buyer received the battery, found it did not seat correctly, and wrote a one-star review about incompatibility. The product was not defective. It was the wrong variant for that specific frame. A quick photo of your frame's battery slot connector pin layout before ordering removes this risk entirely.

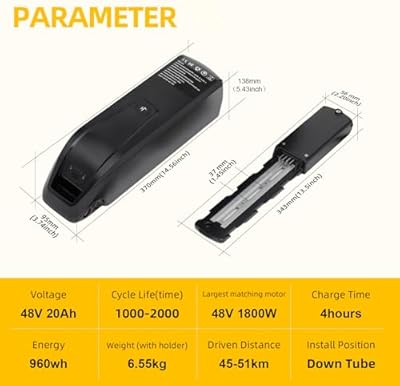

Specs: 960Wh, 30A BMS, 75A Peak
At 48V and 20Ah, the capacity is 960Wh. Real-world range on typical terrain falls between 30 and 50 miles per charge for most riders. Flat ground with pedal assist pushes toward 50 miles. Hillier routes and throttle use bring that toward 30 miles.
The 30A BMS handles 1440W continuous. The 75A peak rating covers brief current spikes on hard acceleration and steep start-from-stop situations without the BMS cutting out. The combination of 30A continuous and 75A peak is appropriate for the 0 to 1800W motor compatibility range. For sustained 1800W operation, the BMS would be running above its continuous rating, which makes 0-1500W the more reliably supported range.
XT60 Discharge Connector
The XT60 discharge plug is used to connect the battery to your ebike controller. XT60 is a high-quality connector rated for 60A continuous and handles the current levels involved in a 30A BMS application with significant overhead. If your controller uses a different connector type (T-plug, Anderson, etc.), XT60 adapter cables are inexpensive and widely available.
The 4-pin base connector refers to the physical mounting connection in the hailong frame slot, separate from the XT60 discharge plug. These serve different functions: the base connector aligns and locks the battery in the frame, while the XT60 is the power output connection to the controller.
Indicator Light and Key Lock
The LED indicator shows remaining charge without needing a full system power-up. The key lock secures the battery in the hailong slot. Both are standard hailong features at this tier.

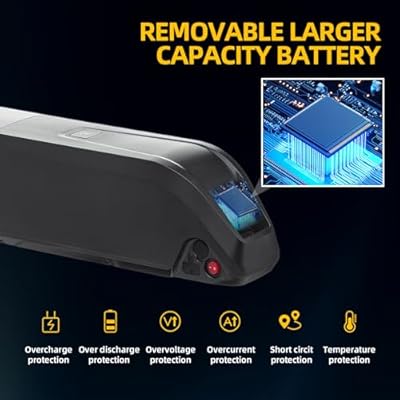

Hailong 20Ah: Weight Distribution Advantage
A hailong-mounted 20Ah pack keeps weight lower and more centrally located on the bike compared to a rear rack-mounted external box at the same capacity. For a 12-pound 20Ah battery, the difference between mounting it mid-frame in a hailong slot versus on a rear rack is noticeable in handling, particularly on turns and at low speeds.
This is the primary reason to choose a hailong 20Ah over an external 20Ah box when your frame supports it. You get the same capacity at better weight distribution.
For cargo-style builds or bikes that already carry rear rack loads, moving the battery weight from the rear rack position to the downtube makes the bike easier to handle under load. A rear rack bike with 12 pounds of battery plus 15 pounds of cargo at the back handles very differently from one with the battery centered in the frame. The hailong format solves this for riders who already have frame-integrated battery slots.
Check current pricing and reviews on Amazon for the most current listing status.
Who Should Buy This
The KUSAYLA 48V 20Ah 4-pin hailong is for riders with a confirmed 4-pin hailong-compatible frame mount who want 960Wh of capacity in the frame-integrated format. The 30A BMS with 75A peak handles the motor compatibility range, and the XT60 discharge connector is appropriate for the power class. The hailong mounting provides better weight distribution than a rear-mounted 20Ah external box.
If you need the 5-pin version, that's a separate KUSAYLA listing. If you need an external box format, check the battery comparison table for 48V 20Ah external options. Filtering by form factor will show you which packs match your mounting requirements.
Browse 48V 20Ah hailong ebike batteries on Amazon to compare options. And for more hailong-specific reviews, see the ebike battery reviews section.
Frequently Asked Questions
How do I determine if I need the 4-pin or 5-pin version? Check your existing battery's base connector pin count, or inspect the female connector in your frame's hailong slot. If you're ordering for a new frame, check the frame documentation. The 4-pin and 5-pin versions are not interchangeable.
What's the difference between the 30A BMS and 75A peak rating? The 30A is the continuous current the BMS is rated to handle indefinitely. The 75A peak is the maximum brief current spike the BMS can pass without cutting out. Hard acceleration and start-from-stop situations can produce brief peaks above 30A, and the 75A peak rating means the BMS doesn't trip during those transients.
Is the XT60 connector waterproof? XT60 connectors have some weather resistance from their design but are not rated as waterproof. Keep the discharge connector protected from water ingress when riding in heavy rain, and don't ride through standing water that could submerge the connector.
Will this fit my specific hailong frame slot? Hailong slots have standard dimensions, but there are variations between frame manufacturers. Most hailong batteries fit most hailong frames, but dimension mismatches occur. Check the battery dimensions against your frame slot specs before ordering if you've had fit issues with previous batteries.
Can this run a 1800W motor continuously? The 30A BMS continuous rating at 48V is 1440W. For motors in the 0-1800W range, the 75A peak covers brief high-current events, but sustained 1800W operation would exceed the 30A continuous rating. For reliable sustained high-power use, motors up to 1500W are better matched to the 30A BMS spec.
What's included in the package? Check the current listing for package contents. Hailong batteries in this class typically include the battery, a compatible 48V charger, and a key for the lock. Confirm the charger amperage and connector type with the listing before ordering.
