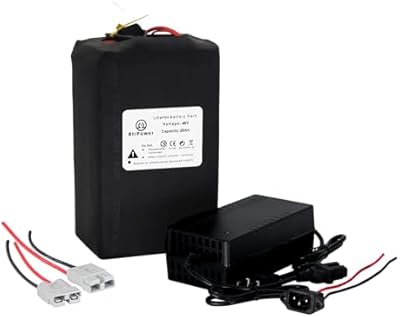

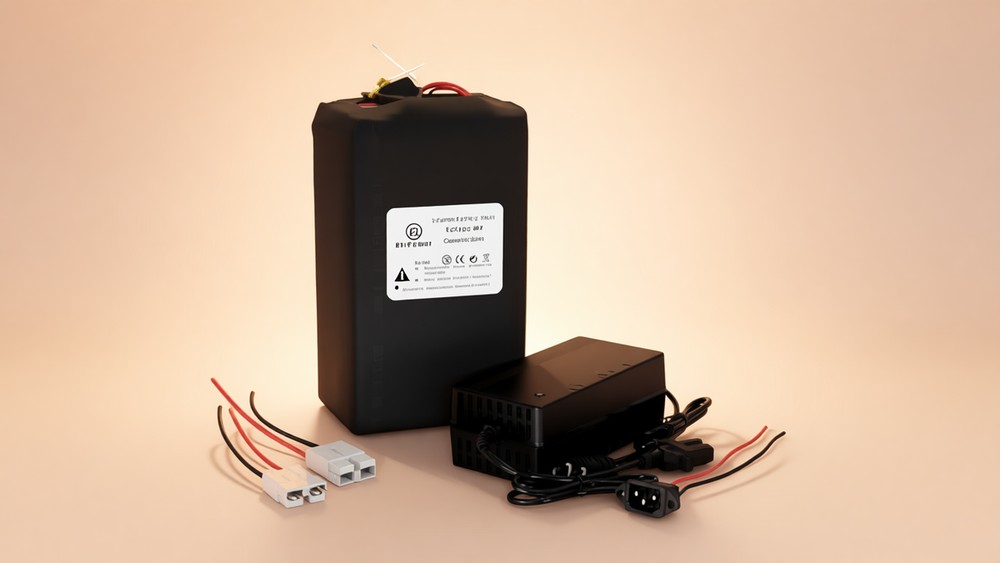

The BtrPower 48V 25Ah LiFePO4 battery is a 1200Wh lithium iron phosphate battery with a 40A BMS, and is similar to other models in the BtrPower line. However, this model is for smaller motors from 250W to 1000W, and is primarily used for e-trikes, electric scooters, and scooter conversions. The battery measures 10.6 by 5.9 by 4.7 inches, making it large for many ebike frames.
It currently sells for 219 dollars and has received a 4.4-star rating from seven Amazon customers, including several ebike builders and e-trike owners who purchased it for exactly the kind of application it was designed for, and a couple of customers who felt the BMS drew less current than they expected based on the specs.
BtrPower and LiFePO4

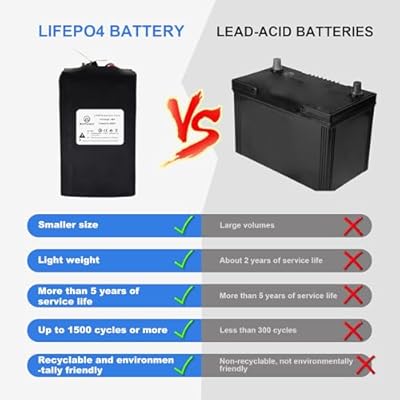

BtrPower is a well-established brand in the ebike battery market, particularly in the LiFePO4 space. LiFePO4 is non-toxic, non-flammable, and has a longer lifespan than the lithium-ion commonly used in ebike batteries. BtrPower claims that their batteries will last for 1500 or more charge cycles. In addition, LiFePO4 has been popular in the e-trike building community due to consistent performance.
Since 16S1P wiring can be referred to as both 48V and 52V, depending on the controller manufacturer, this battery will work with controllers that label themselves as either 48V or 52V.
Specs at a Glance
- Voltage: 48V nominal (52V compatible, 16S1P)
- Capacity: 25Ah (1200Wh)
- Chemistry: LiFePO4
- BMS: 40A built-in
- Motor compatibility: 250W to 1000W

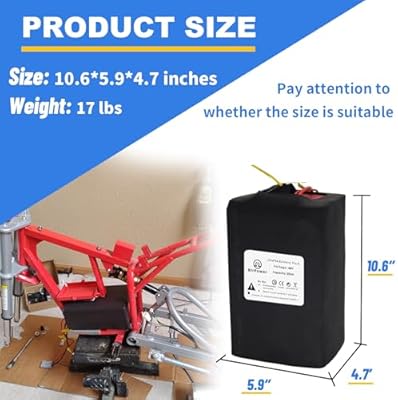

- Dimensions: 10.6 x 5.9 x 4.7 inches
- Estimated range: 25 or more miles without pedaling
- Cycle life: 1500 or more cycles
Safety and Chemistry

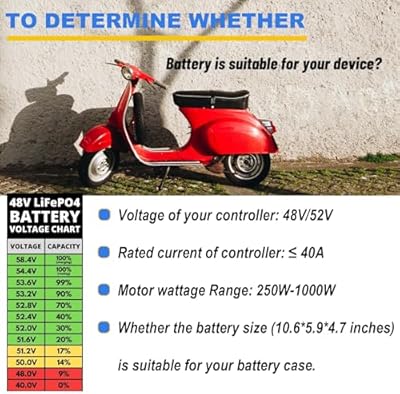

LiFePO4 is the safest lithium chemistry in common usage. While standard lithium-ion batteries can ignite when subjected to certain types of damage such as punctures, overcharging, or short circuits, LiFePO4 cannot. The charging limit for a LiFePO4 battery is 3.65 volts per cell, and the resting voltage for a fully charged LiFePO4 battery is 3.35 volts or greater. As such, it is perfectly normal to see a LiFePO4 battery read anywhere between 53.6 volts and 58.4 volts when it is fully charged.
BMS Considerations
While the BMS for this battery is rated for 40 amps, a couple of Amazon reviewers have stated that their actual maximum current draw is lower than the specified value, approximately 35 amps. One reviewer noted that while they had ordered the battery for a build that would push the motor hard at times, the battery performed fine but the BMS did not keep pace with the motor's maximum draw in terms of current flow.
In general, for users who plan to run motors at lower current levels in the 250W to 800W range at moderate loads, this is unlikely to be an issue. However, for users who intend to run very high-wattage motors at high duty cycles, it would be wise to check the specifications of the BMS before ordering.
Range and Real-World Use
Several Amazon reviewers reported varying but generally positive range results. BtrPower quotes a range of 25 or more miles without pedaling as a baseline. One reviewer ran this pack as a series replacement for three 12V lead-acid batteries in a 60V ZooMe3 mobility scooter and got extended range over the original setup. Another reviewer, who is a professional e-trike builder, reported they run these batteries frequently in customer builds. A third reviewer had good luck with the battery in their mobility scooter conversion project.
These are not ebike-specific applications, which speaks to the versatility of the battery across different 48V and 52V platforms.
Who This Battery Is For
This battery is suitable for:
- E-trike builders and conversion projects
- Electric scooter or mobility vehicle upgrades
- Cargo bike builds that can accommodate the 10.6 x 5.9 x 4.7 inch footprint
- Riders replacing multiple 12V lead-acid batteries with a single lithium pack
- Anyone who needs 1200Wh with LiFePO4 chemistry safety
If you need to support a motor that draws much more current than 40 amps, you might want to consider the BtrPower 50Ah or the HAYAEnergy 25Ah, which both use a 50A BMS. Check the comparison table to compare these options.
What Amazon Reviewers Say
The 4.4-star average indicates a mostly positive experience, although not entirely. The five-star reviews indicate that the battery performs well in the field for trike builds, scooter conversions, and commercial e-trike manufacturing. The three-star reviews all reference the fact that the BMS maximum current draw is less than the labeled rating.
This split is worth taking into account. If you are planning to use this battery for the purpose it was designed for, the positive reviews are probably more relevant. If you are running a high-draw motor, however, you will want to pay attention to the three-star feedback.
Pros and Cons
Pros:
- 1200Wh LiFePO4 capacity for serious range
- Non-flammable chemistry for safety
- 1500 or more cycle life
- Versatile across e-trikes, scooters, and cargo bikes
- Multiple verified performance examples from Amazon reviewers
Cons:
- Actual BMS current draw reportedly lower than the 40A label
- Large physical size limits compatibility with standard ebike frames
- Not ideal for motors regularly drawing close to 40A
FAQ
What is the difference between the 48V and 52V versions? Both 48V and 52V refer to the same cell configuration with 16S1P wiring. The battery will work with controllers labeled either 48V or 52V in this range.
How does LiFePO4 compare to lithium-ion for cycle life? LiFePO4 can provide 1500 or more cycles to 80 percent capacity, while standard lithium-ion can deliver 500 to 1000 cycles. Additionally, LiFePO4 is safer, with no risk of thermal runaway under normal operating conditions.
Is 1200Wh enough for my trike? The amount of energy required will depend on the motor, load, and terrain. Based on Amazon reviewer experiences, the 25-plus mile estimate is a reasonable baseline. If you want to maximize range, BtrPower offers a 50Ah version of this battery for riders who require more capacity.
What is the maximum current draw? Although the BMS is rated at 40A, some reviewers report that the actual maximum current is approximately 35A. Check the maximum current draw of your motor prior to purchase.
What warranty does BtrPower offer? According to the listing, BtrPower provides a 3-month money-back guarantee or exchange option, as well as a 12-month warranty with 48-hour response time from the seller.
Will this fit inside my ebike's battery case? Due to its 10.6 by 5.9 by 4.7 inch footprint, this battery is designed for e-trike, cargo, or custom enclosure mounts, and not for standard Hailong or Shark-style ebike battery slots.
Can two BtrPower 25Ah packs be wired in parallel for more capacity? Yes, since LiFePO4 packs of the same voltage can be connected in parallel to provide additional capacity, two 25Ah packs in parallel will provide 2400Wh and will distribute the current draw between both packs, ensuring each BMS operates within acceptable parameters. Always ensure both packs are at the same state of charge prior to connecting them in parallel, and always use a proper parallel adapter harness instead of directly splicing the wires together.
Compare all BtrPower and 48V 25Ah options on the full table.
